How to insert batteries in COOAU trail camera

Cooau trail camera is battery-powered. It must be inserted into 8 1.5V AA batteries.

How to insert batteries into the camera? Here are the steps.

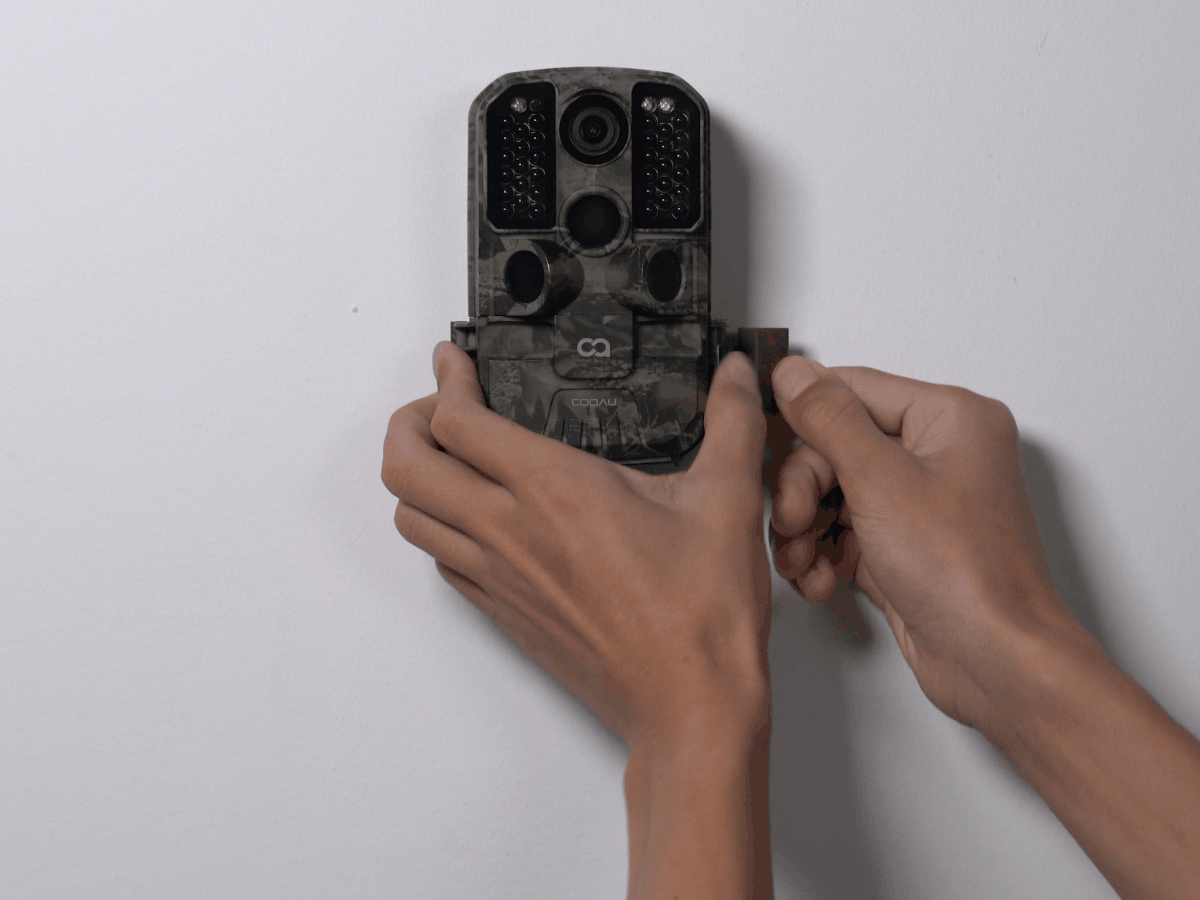

1. Open the bottom part of the case with the latch on the right side.

2. There is a tan button on the bottom of the front of the case. Push the button to eject the battery case.

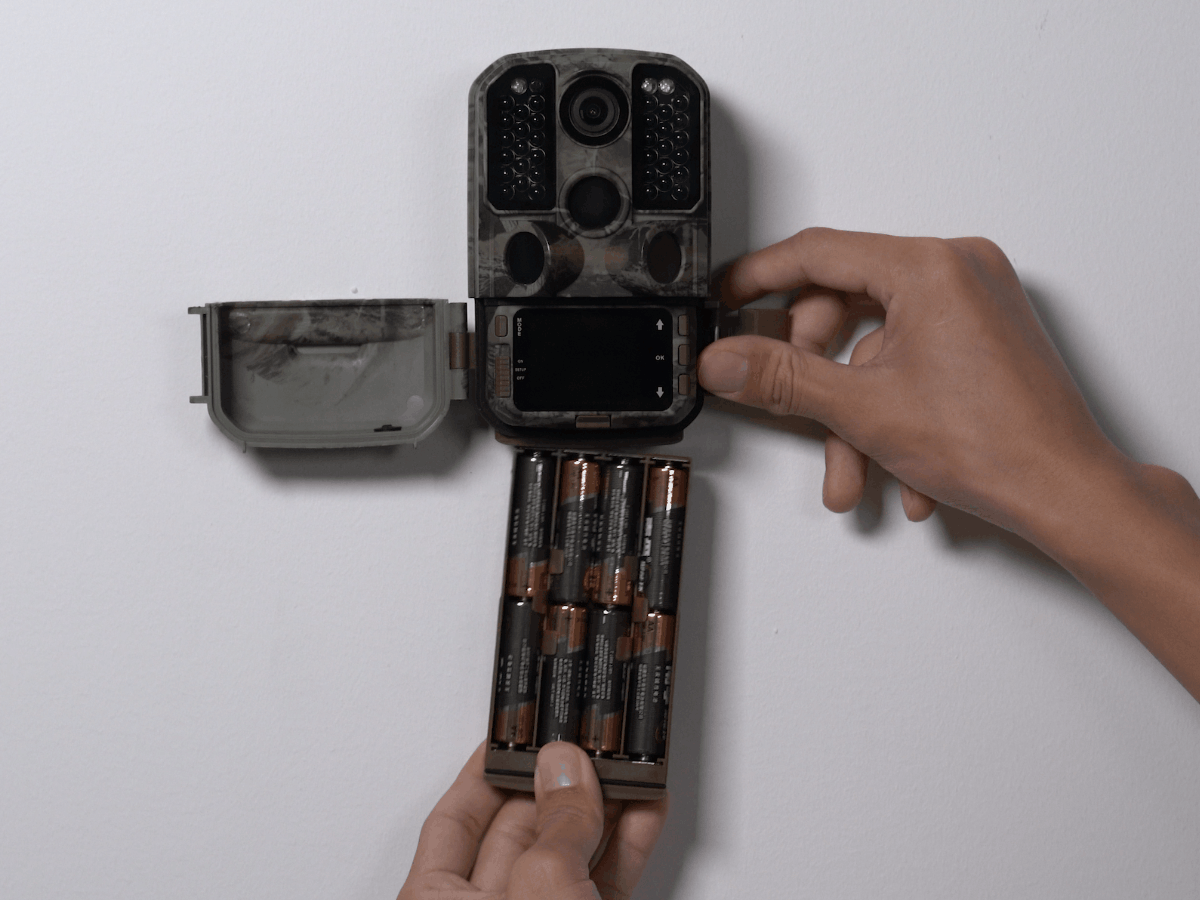

3. Pull the battery case the entire way out with a firm pull. (The battery case is a separate part, so you don't have to worry about damaging the camera due to force.)

4. Install 8 batteries inside according to polarity.

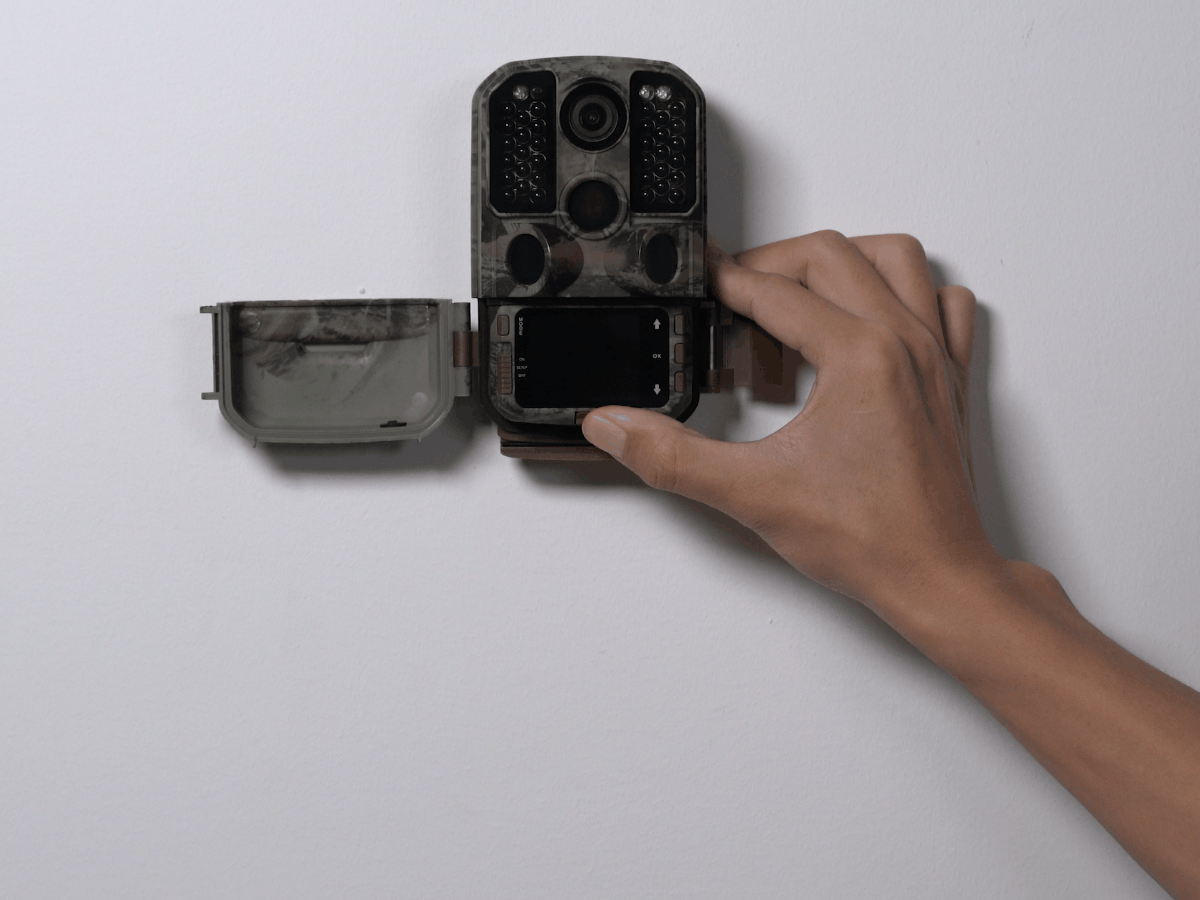

5. Slip the battery box back into the camera


    What's more, for best user experience, here are some tips about battery using:

    1. Do not use new and old batteries together.
    2. DC interface needs 6V/1.5A adaptor with 3.5 mm (outer diameter) s*1.3 mm (inner D) plug head.
    3. Usealkaline batteries to power the camera instead of lithium-ion rechargeable batteries. Because rechargeable batteries have a lower voltage output and poor performance under low temperatures.


    If you still have problems with the battery installation, please feel free to contact us.
